Substation Fencing: Procurement and Earthing Interfaces

A metal fence at a substation is part of an electrical environment. Its security construction, position and conductive connections need to be considered together. Specifying mesh and height alone leaves the electrical designer without the information needed to assess the boundary.

Put electrical decisions ahead of post positions

The electrical designer should establish the fence location, earthing or isolation arrangement and any restrictions on excavation or conductive connections. Those decisions affect posts, gates, nearby structures and adjoining fences. Do not choose a standard footing detail and ask the electrical team to accommodate it afterwards.

HSE's electrical precautions explain the need to manage electrical risks through competent assessment. There is no universal fence-to-equipment clearance that can be copied into every substation order.

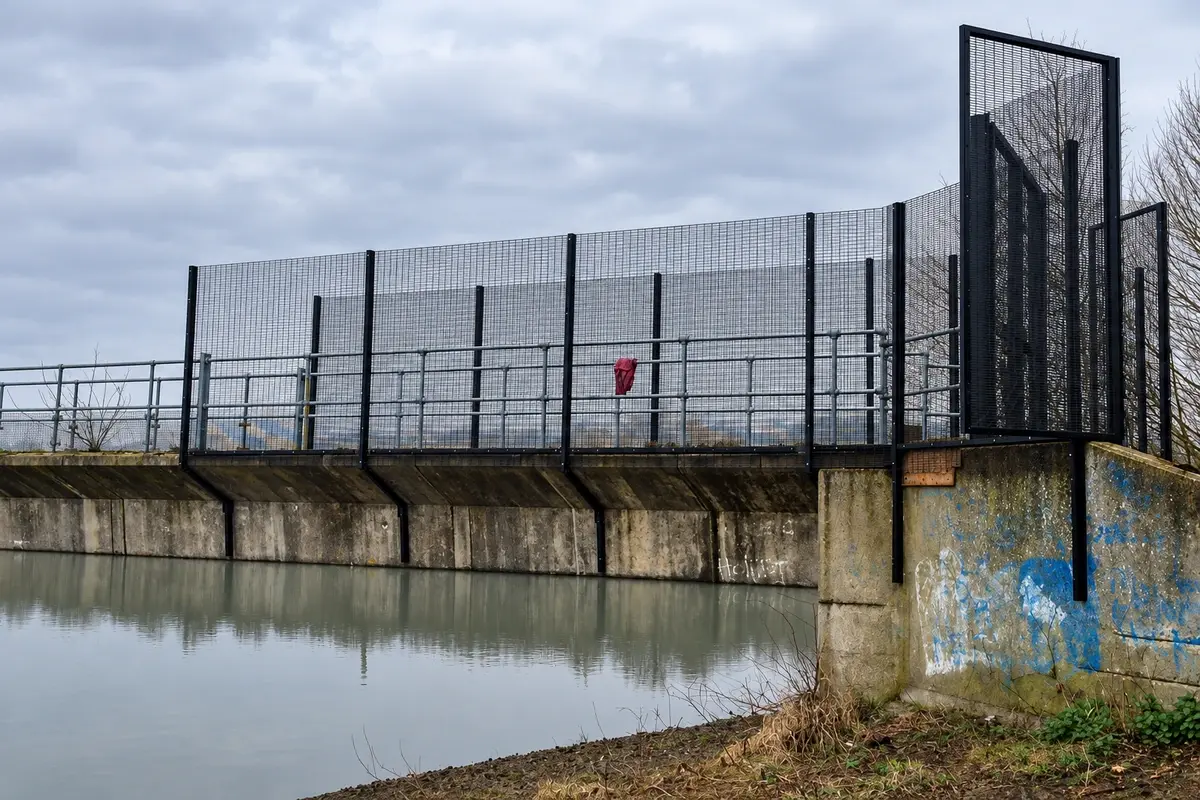

Tall metal mesh fence around a utility site
Utility site fencing illustrates why the boundary position and adjacent structures must be reviewed together.

Divide the design responsibility explicitly

Item Fence package contributes Specialist decision required
Metal panels and posts Material, section and connection details Their role in the earthing design
Gate leaves Hinge, latch and movement drawings Electrical continuity or isolation requirements
Foundations Loads and proposed fixing interface Buried services and permitted excavation
Equipment access Clear opening and removable sections Transformer or switchgear replacement envelope

An apparently minor substitution matters here. A painted bracket, insulating insert or different hinge arrangement may change a connection assumed by another designer. Submit the change with a marked drawing rather than accepting it only through the purchasing description.

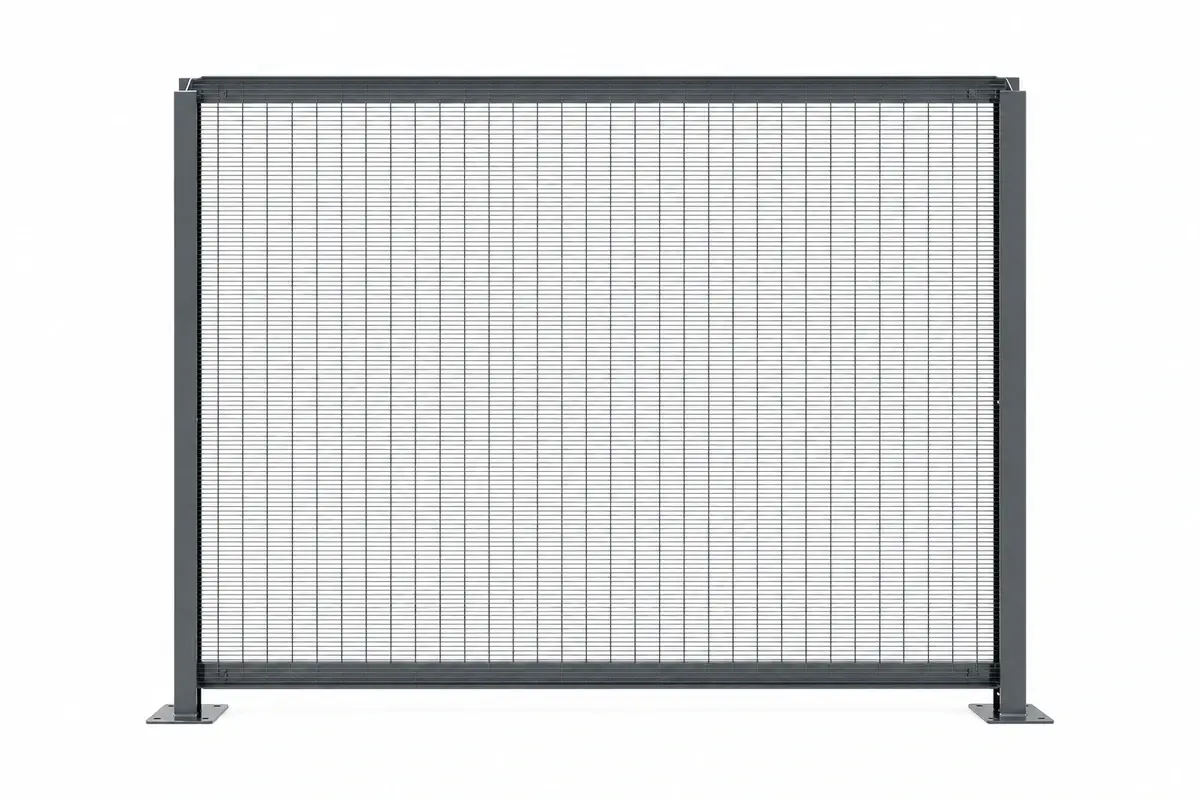

Freestanding welded security mesh fence panel with two posts
An example metal fence panel; the electrical designer must define any earthing or isolation requirements.

Audit the earthing connection schedule

Use a numbered plan to count designated connections after the electrical design is approved. For example, a hypothetical design might list 12 post connections, four gate-leaf connections and two interfaces to adjacent metalwork: 12 + 4 + 2 = 18 scheduled locations. This is a document reconciliation example, not a bonding design or prescribed spacing.

Compare the 18 location identifiers against the installation schedule and test record. An entry called “earthing accessories: one lot” cannot show whether a particular location was omitted. Keep material quantities separate from the electrical acceptance results.

Allow for equipment replacement, not just daily access

Draw the largest planned replacement item on its handling route. Check the gate's usable opening, posts, turning space and overhead constraints with the operator. Where a removable fence section is proposed, specify its supports and reinstallation method as an assembly. Site cutting should not become the default way to gain access.

Separate routine pedestrian access from heavy equipment access wherever the layout permits. Gate swing, latching and emergency arrangements must follow the operator's approved design.

Inspect the supplied system against the approved revision

At receipt, reconcile panel and post marks, connection hardware and finish with the approved schedule. After installation, the competent electrical team completes the specified electrical checks; the fencing team checks line, fixings, gate movement and physical condition. Record both workstreams in the handover package.

For a change affecting either workstream, use a technical query before manufacture. The technical deviation schedule shows how to record an alternative without presenting it as an accepted equivalent.
