Specify installed coverage, not just coil size
A custom flat-wrap enquiry needs the installed plane and loop overlap shown clearly. Packed coil dimensions should be kept separate from the required fence coverage. Loop diameter, overlap and installed length describe different dimensions. A packed coil dimension does not establish how much fence it will cover. State the required installed height, coverage and fixing arrangement in the order drawing.

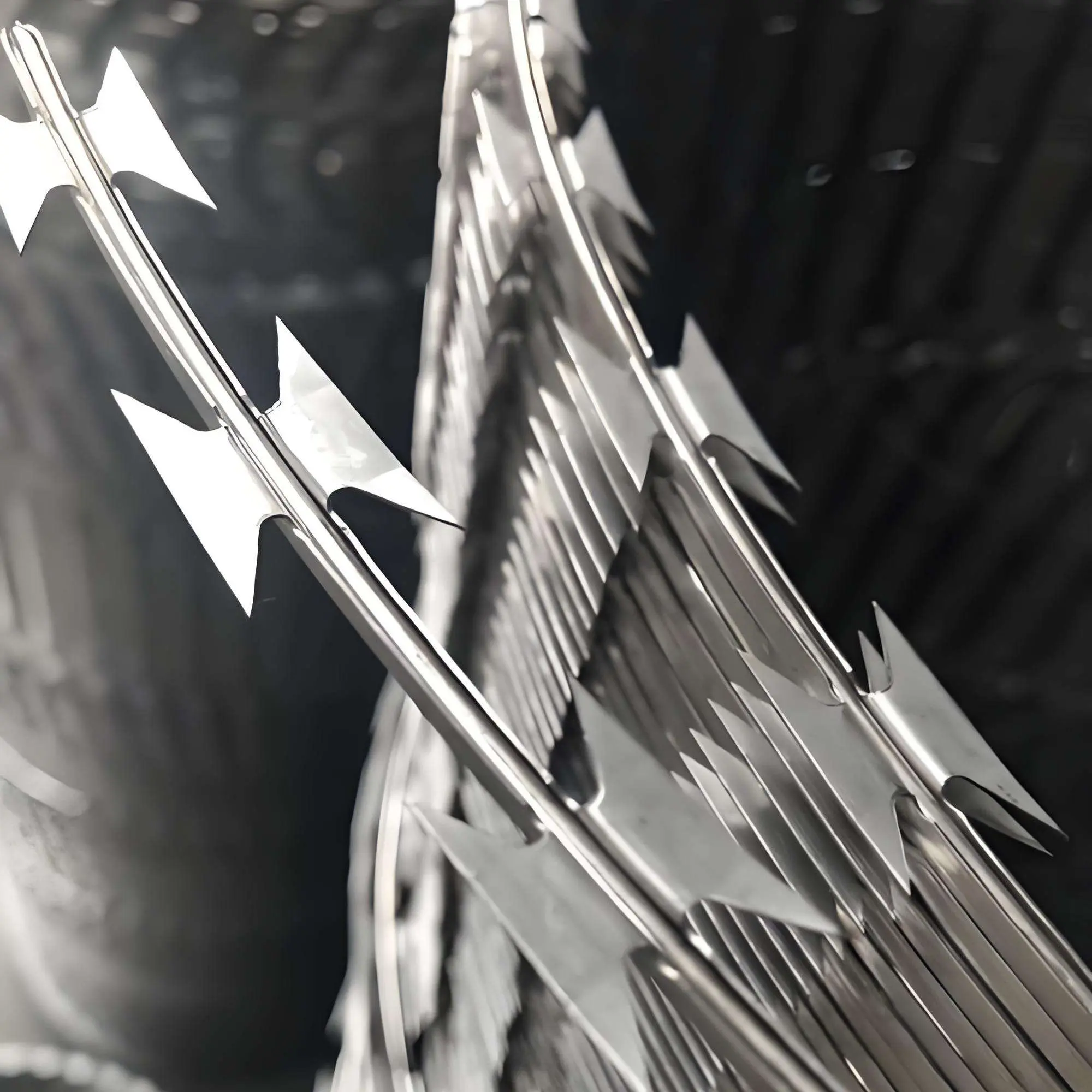

The blade profile, core wire, metallic material and protective finish must identify the actual offered product. Do not assume that all products described as flat razor wire share the same construction.
Coordinate supports and public interfaces
| Detail | What it establishes |
|---|---|
| Planar loop arrangement | Position and projection relative to the boundary |
| Support and fixing layout | Attachment to the approved fence or gate |
| Gate movement | Clearance through the complete opening cycle |
| Surrounding access | Areas requiring project safety and legal review |
A flatter profile does not automatically make razor wire appropriate beside public access. The project team must assess the location, legal requirements, warning arrangements and professional installation method. No universal installation height or warning-sign spacing is stated here.
Agree the custom packing and identification for sharp-wire products
Identify product references and quantities without requiring the receiving team to open a hazardous coil for counting. Agree protective packing and handling instructions with the order. Storage, lifting, installation and removal should be carried out under a suitable professional method.
For maintenance, arrange safe inspection access and the approved response to damage or trapped material. Do not require staff to improvise repairs around sharp tensioned components.
Custom order specification: flat-wrap razor wire
| Order detail | What to define with our team |
|---|---|
| Loop arrangement | State loop diameter, overlap, installed height and coverage basis. |
| Core and tape | Identify wire, blade profile, strip thickness, material and protective finish. |
| Attachments and packing | Provide support details, gate clearances, protected packs and item labels. |
Confirm the offered construction and coverage convention before batch supply. Agree packing that keeps the product identifiable while contained. Placement, warnings, handling and maintenance must follow the approved site arrangements.
Can flat-wrap wire be quoted for a gate topping?
Provide the gate movement envelope and approved support detail. We review the material scope only after the project has addressed projection, clearance and the location-specific requirements.
