By FencingWise Editorial Team · Updated 17 September 2026.
Read the method before the duration
ISO 9227 covers neutral salt spray, acetic acid salt spray and copper-accelerated acetic acid salt spray procedures. Those test environments should not be treated as interchangeable.
ASTM's B117 scope explains that the practice concerns operation of the salt-fog apparatus and does not itself prescribe the exposure period or interpretation for a specific product. The relevant product specification or agreement supplies those requirements.
Record the method designation, edition and any deviation. A report that states only “salt spray” is insufficient for a controlled comparison.
Identify the sample behind the result
The report should describe the substrate, surface preparation, metallic layer, primer, topcoat, film thickness and cure where applicable. Include whether the specimen is a flat coupon or part of a finished fence component.

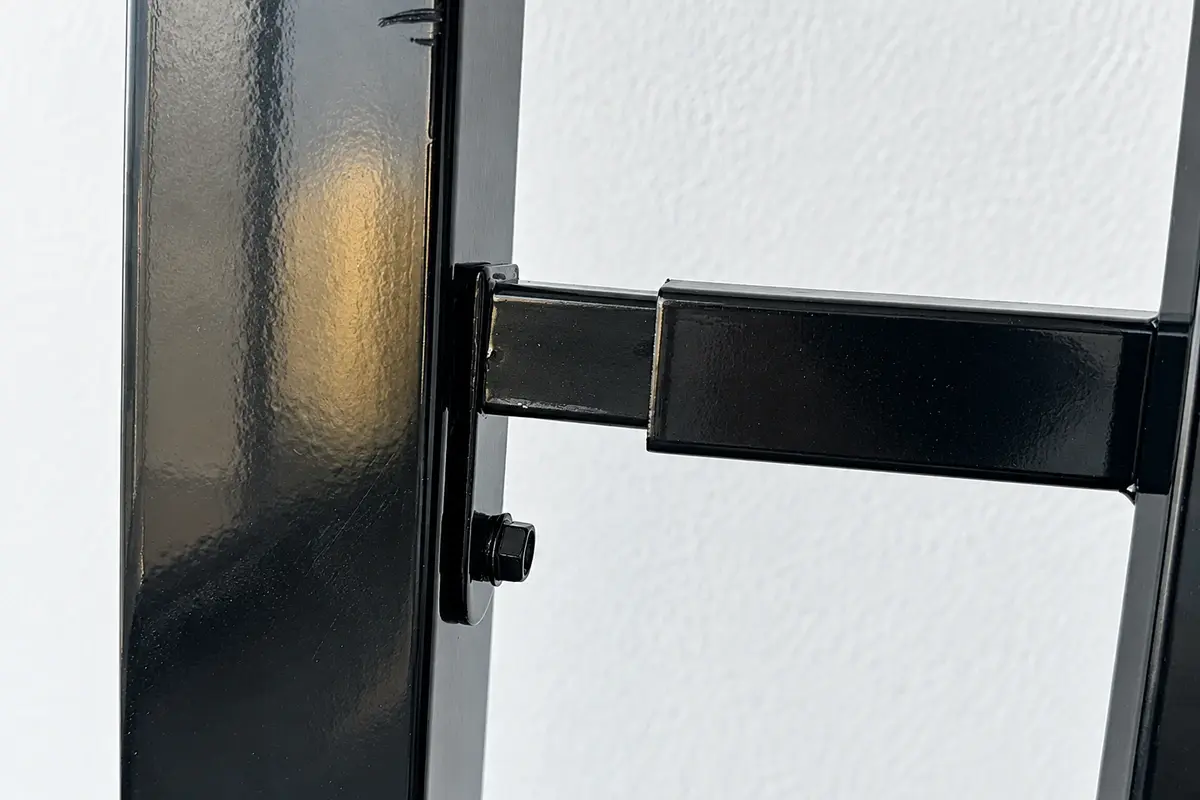

A smooth coupon and a fabricated gate corner expose different geometries. A flat-panel result can support a coating-process comparison without proving that every weld, cut end or recess on the gate received the same protection.
Trace the sample to the proposed system and production route. A laboratory result for a different primer or substrate should not be presented as the result for the order.
Separate the possible endpoints
| Report feature | Why it affects interpretation |
|---|---|
| Red rust | Describes corrosion of a ferrous substrate where assessed |
| White corrosion products | Can concern the metallic protective layer |
| Blistering | Uses a different observation or rating from rust |
| Scribe creep | Assesses deterioration from a deliberate defect |
| Edge corrosion | Depends on edge preparation and treatment |
| Adhesion after exposure | Requires its own assessment method and timing |
A specimen may have no visible red rust while showing blistering or loss of adhesion. A requirement for one endpoint does not automatically cover the others.
State the inspected area and any excluded edges. Otherwise a cropped photograph can conceal the feature on which the decision depends.
Compare two fictional reports fairly
Assume Report A describes an unscribed coupon exposed for 1,000 hours, with “no visible red rust” as its stated endpoint. Report B describes a scribed coupon exposed for 720 hours, with a limit on creep from the scribe.
The figures do not establish that A is superior. The damage condition and acceptance criteria differ. To rank the systems for a particular requirement, obtain comparable specimens, methods and endpoints.
Even if the method is the same, check coating thickness and substrate preparation. A report for a deliberately thicker laboratory coating may not represent the thickness permitted on the production fence.
Interpret the inspection interval
Suppose a fictional test is inspected every 24 hours. No visible red rust is recorded at 480 hours, and it is first observed at 504 hours.
The evidence places first observation within the interval after 480 hours and no later than 504 hours. It does not establish that corrosion began exactly at hour 504.
If the acceptance requirement is no red rust through 480 hours, the recorded result at 480 hours is relevant. If the requirement is no red rust through 500 hours, the available observations may not establish the necessary condition at that exact time without the agreed interpretation.
Keep inspection times and photographs in the report. A final summary alone can hide the resolution of the observation.
Do not convert chamber hours to outdoor years
1,000 hours ÷ 24 = 41.67 days of test exposure. That conversion changes the time unit only. It does not represent 41.67 days, a year or any other defined duration in a coastal installation.
The American Galvanizers Association explains limitations of salt-spray comparisons, particularly for hot-dip galvanized steel. Accelerated laboratory exposure does not reproduce every mechanism and wetting cycle outdoors.

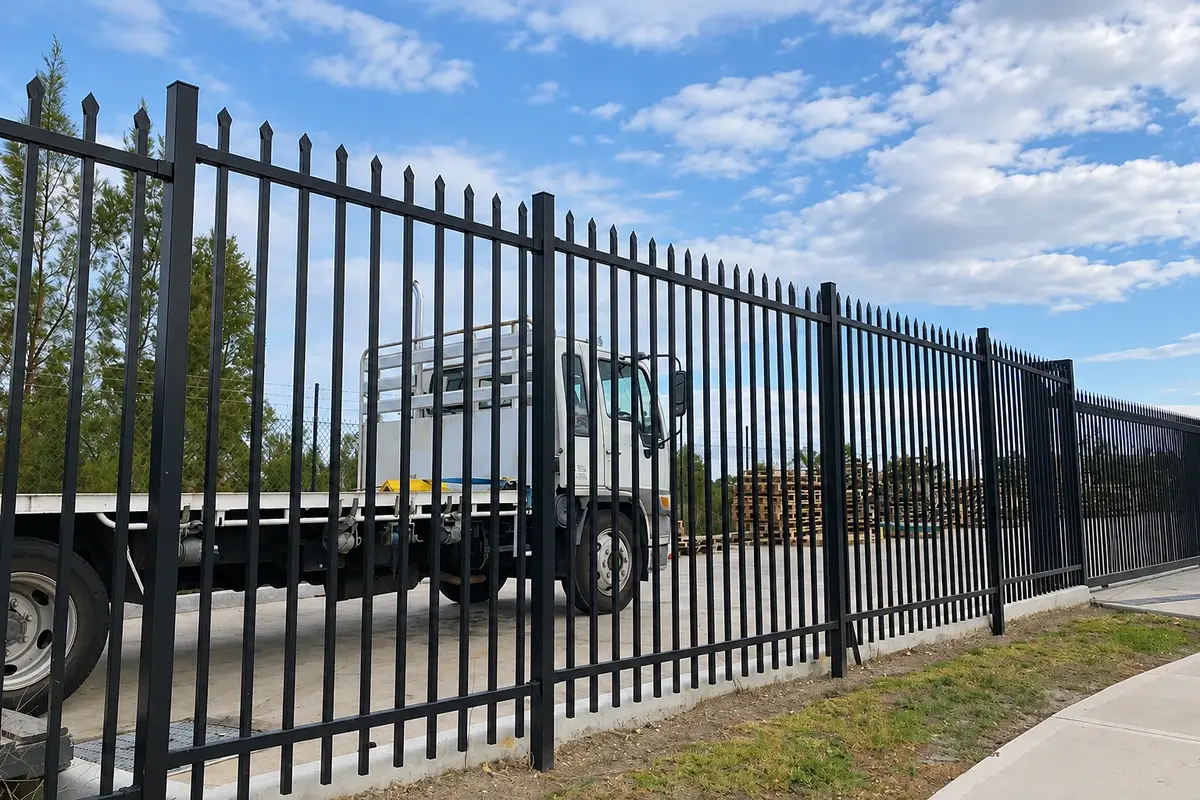

Outdoor performance also depends on design details, damage, maintenance and the actual environment. A longer test result should not become a service-life or warranty statement unless there is appropriate supporting evidence for that separate claim.
Turn the report into a procurement decision
Create a comparison row for each offered system: exact coating construction, sample identity, method, exposure, defect preparation, endpoints and results. Mark missing fields rather than assuming they match.
Accept the evidence only for the claim it supports. If the requirement is process consistency, compare representative production samples under the agreed procedure. If the question is suitability for a coastal site, combine relevant evidence with the full coastal system specification.
Keep the report linked to the approved coating revision. A later substitution in primer, preparation or film thickness requires a review of whether the earlier result still applies.
