Use the section drawing to establish fit
The post profile and attachment pattern are essential when matching farm stock. A requested length or heavy-duty label alone does not define a repeatable component. The words “heavy duty” do not define a section. Record length, section dimensions, mass per metre and the attachment pattern. Two posts of the same length can differ in material quantity, profile and clip compatibility.
Post length and installed fence height are also different dimensions. The installation design establishes embedment and support requirements for the ground and fence system.

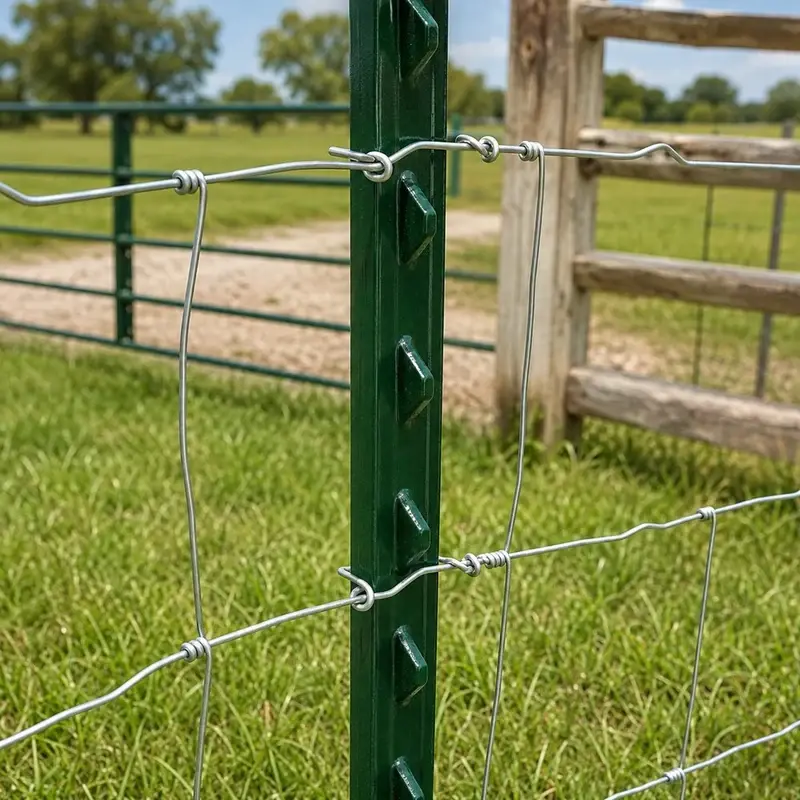

Match the wire attachment system
| Post feature | Procurement consequence |
|---|---|
| T-section and studs | Clip geometry must suit the face and wire |
| Y-section and holes | Hole positions must suit the intended attachments |
| Top profile | Appropriate cap or protection may be required by the use |
| Finish | Coating and repair requirements should be identified |
Check the actual post profile and attachment system together. Fittings should not be assumed compatible with an unrelated section merely because both are described as Y-posts.
Identify line-post and strainer requirements separately in the order
Ends, corners and tensioning locations need the selected system's appropriate support arrangement. A driven line post is not automatically an adequate end strainer. Include those assemblies separately when preparing a complete farm fence package.
For repeat supply, retain a section sample or measured drawing and the hole or stud pattern. Receiving checks should reconcile length, straightness, markings and the agreed finish before the posts are distributed to installation teams.
Custom order specification: farm t-posts & y-posts
| Order detail | What to define with our team |
|---|---|
| Section and length | Provide the T or Y profile drawing, dimensions, overall length and mass per metre. |
| Wire attachments | Specify studs or hole locations and the actual wire and clip interface. |
| Finish and packs | State coating, marking, cap requirements where specified and quantities by post reference. |
Compare the partner’s proposed section and clip fit with the approved reference before batch supply. Receiving checks should retain the post length, straightness and attachment pattern. Embedment and end-support requirements come from the installation design.

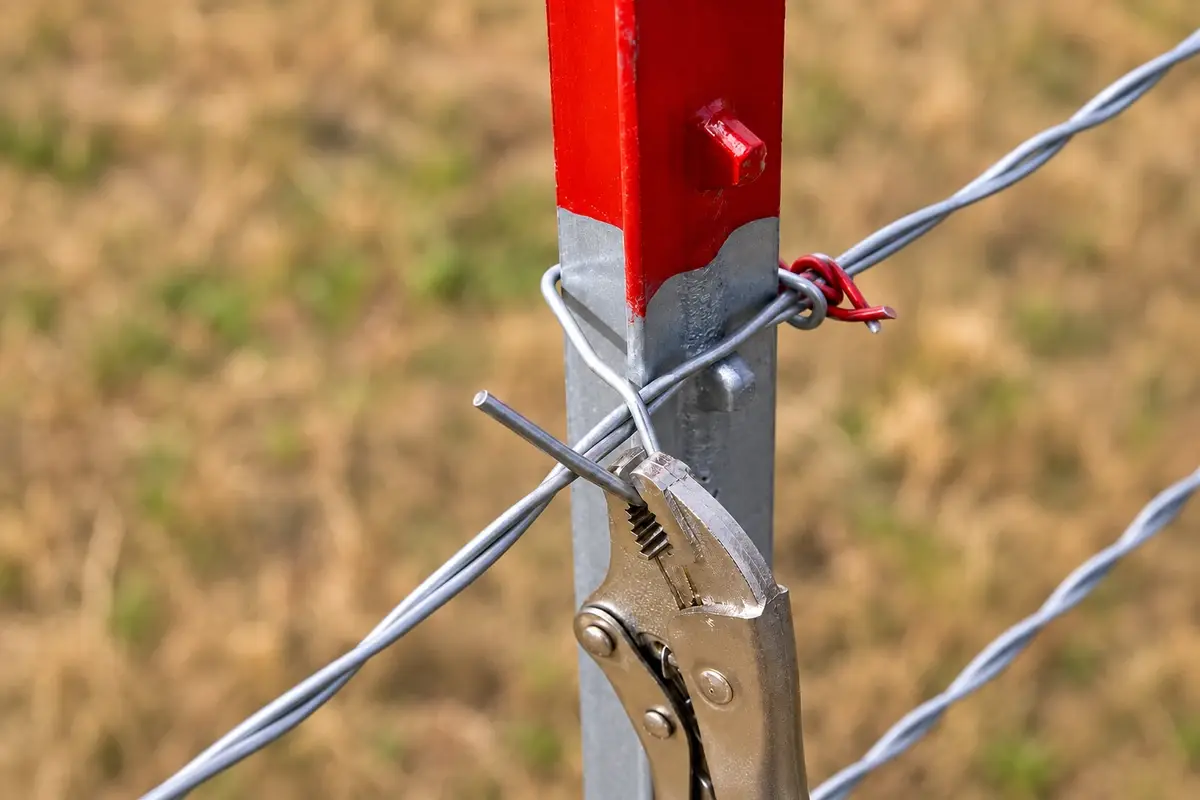

Can you supply posts to match an existing clip system?
Send a section sample or measured drawing and the clip and wire details. We review compatibility with the proposed partner product; T-post and Y-post fittings are not assumed interchangeable.
