Read the full mesh design

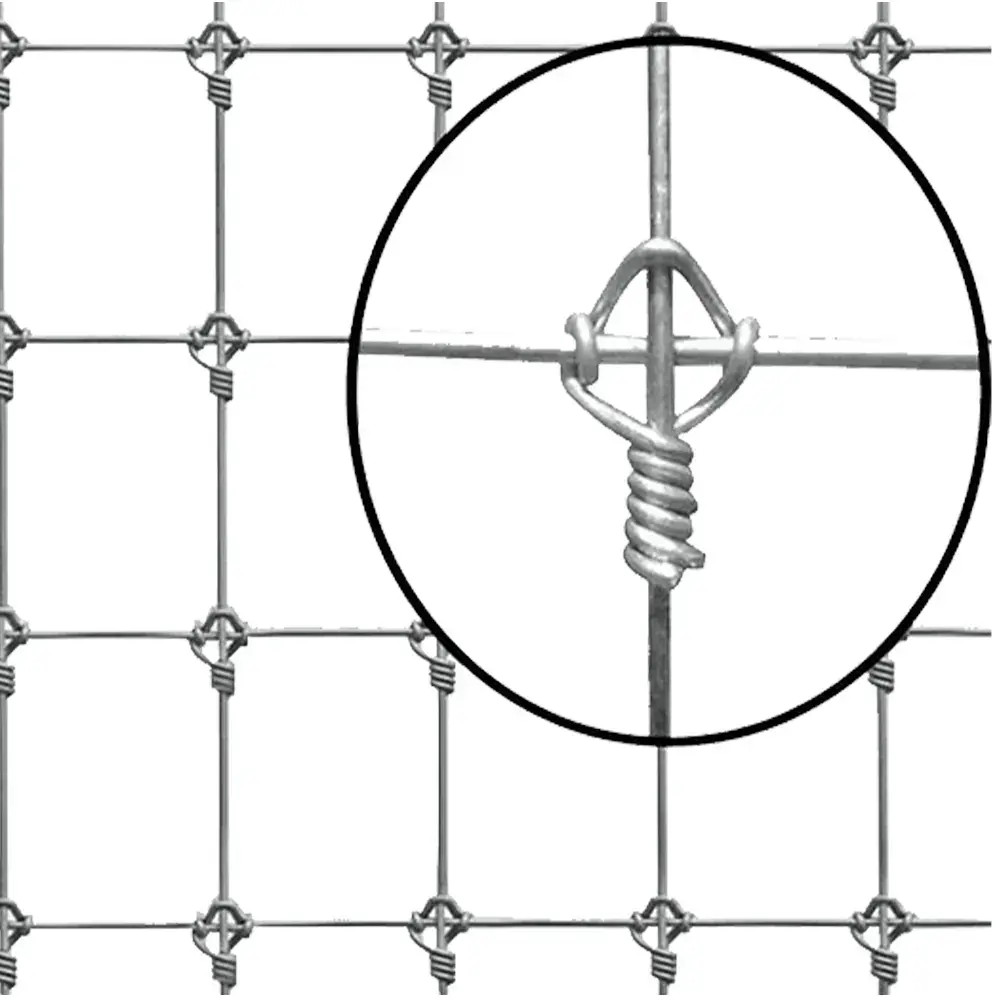

A fixed-knot roll must be identified by its complete pattern, not only its overall height. Preserve the lower and upper line spacing when comparing proposals or matching an earlier delivery. Height, number of horizontal wires, vertical stay spacing and the sequence of openings all affect the finished mesh. A catalogue code is useful only when its meaning is stated. Keep a dimensioned mesh diagram with the order so that a distributor and installer interpret the same pattern.
Closer lower openings may be considered for smaller stock, but the whole selection must suit the species, age and use. Fixed-knot construction alone does not establish suitability for every animal or enclosure.
Compare the roll and the installed system
| Product detail | Effect on procurement |
|---|---|
| Knot and stay construction | Distinguishes the woven fence type |
| Line and stay spacing | Defines the openings across the height |
| Wire and coating | Establishes the material and protection basis |
| Roll length | Affects joints, handling and pack quantities |
The terminal and corner assemblies carry the tensioned run. Line posts hold the specified alignment but are not automatically substitutes for strainers. Use the selected system's installation instructions and the site's ground conditions to establish the support arrangement.
Retain the approved custom roll specification for repeat supply
For extensions and repairs, retain the mesh pattern, wire measurement basis and coating reference. A roll of the same overall height may have different line positions and require a different connection at the join.
For bulk supply, identify roll quantity, labels and pallet arrangement separately. Actual dimensions and material options are established in the offer rather than inferred from another manufacturer's model number.
Custom order specification: fixed-knot field fence
| Order detail | What to define with our team |
|---|---|
| Mesh pattern | State height, horizontal-wire count, spacing sequence and continuous stay spacing. |
| Wire and knot | Identify line, stay and separate knot-wire details, grade and coating requirements. |
| Roll order | Specify contained length, quantities, labels and agreed pallet or handling units. |
Confirm the partner’s mesh drawing and measurement basis before ordering. Where samples are requested, check the actual knot and spacing pattern. Livestock suitability and terminal-support design require the responsible farm or project assessment.
Can fixed-knot rolls match a previous field-fence order?
Provide the original pattern, wire details, coating and roll dimensions. Matching height alone is insufficient if line positions differ; any joining or transition detail also needs confirmation.
