Fence Foundations: Design Inputs Before Custom Post Orders

Custom posts and base plates should be ordered against the project’s approved support design, not a hole size selected from fence height alone. We explain the load path and site information the responsible designer needs before releasing those manufacturing interfaces. Ground conditions, panel construction and later attachments can change the required support even when the fence height stays the same.

Follow the load from the panel into the ground

Solid white vinyl fence panels beside a road

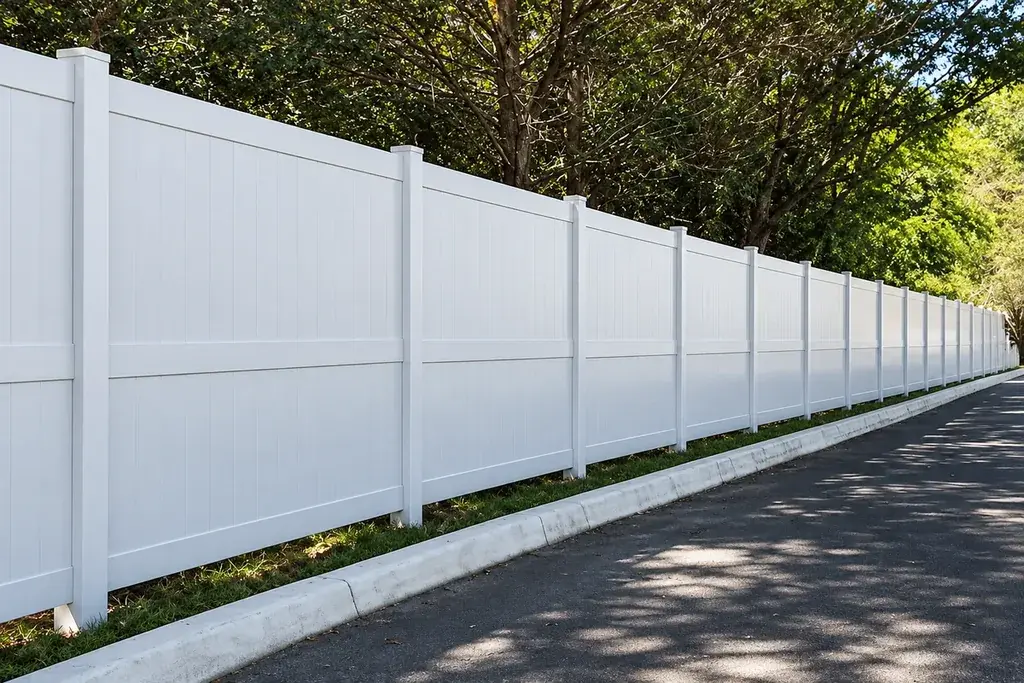

A solid panel presents a different exposed surface from open mesh; the actual load still requires project design.

For the factory enquiry, provide the panel type, installed post module and attached items alongside the approved support connection. A manufacturer needs those interfaces to produce the specified post or base plate, while the project designer establishes the loads and ground resistance. Increasing a plate size or concrete quantity without that review does not demonstrate that the complete path from mesh to foundation is adequate.

A larger concrete volume is not automatically a complete solution. Ground strength, movement, water conditions, nearby excavations and the geometry of the foundation can affect behaviour. For a base plate, the anchors and concrete edge conditions introduce additional checks.

The designer also needs the actual fence construction. A dense mesh, an open railing and a solid privacy screen do not have identical wind behaviour. Adding a screen to an existing fence should therefore trigger review rather than be treated as a minor decorative change.

Use a simplified example to see the effect of height

Assume, only for illustration, a uniform effective horizontal pressure p of 0.5 kN/m² acting over a gross rectangular tributary width b of 2.5 m. Ignore shielding, mesh-specific coefficients, dynamic effects and all design factors. This is a mechanics example, not a design wind pressure or a usable foundation calculation.

For height h, the resultant force is p × b × h. Its simplified moment at the base is p × b × h² ÷ 2 because the resultant acts halfway up the rectangle.

Illustrative height Resultant force Base moment
2.0 m 2.50 kN 2.50 kNm
3.0 m 3.75 kN 5.625 kNm

Increasing height by 50% raises the moment by 125% in this simplified model. That squared-height relationship explains why adding a taller upper section can have a larger effect than a buyer expects. It does not determine post size, foundation depth or reinforcement.

The actual engineer must establish the applicable loads, combinations, coefficients and resistance checks for the location and assembly.

Supply the ground information the designer needs

Input Why it affects the design
Ground investigation and soil profile Defines the basis for resistance and movement assessment
Groundwater and drainage Influences excavation and long-term conditions
Slope and retaining structures Changes geometry and nearby support conditions
Underground services Constrains safe excavation and foundation location
Adjacent foundations or trenches May affect available ground and interaction
Finished surface levels Establishes the exposed post height and lower-edge arrangement

Do not replace site information with a guess based on the surface appearance. A paved area may conceal fill, a thin slab or buried services. Where information is insufficient, the designer should define the necessary investigation before dimensions are fixed.

Keep excavation controls separate from design calculations

A structurally designed foundation still requires a safe construction method. The HSE excavation guidance states that risks from underground services must be addressed before excavation begins. Access, ground support and the actual work conditions also need the responsible contractor's controls.

This article does not provide a digging depth or a universal concrete mix. Those values belong in the approved project design and construction documentation. A contractor should not proceed on the strength of an illustrative calculation in a product blog.

Review changes before using the same foundation again

Reassess when fence height, panel type, post pitch, gate geometry or attached equipment changes. A new sign or screen can alter the effective exposed area; a wider gate can change the support demand; a moved post can approach a concrete edge or service corridor.

Record the changed drawing and obtain the designer's decision. Do not assume a previous successful installation proves the revised arrangement is acceptable. Service history can be useful evidence, but it does not replace the missing design inputs.

Give procurement a defined output

Illustration of a steel post base bracket and bolts
A base bracket illustrates an interface item; anchor, concrete and edge details must come from the approved design.

Ask the designer to release the post embedment or base-plate interface with identifiable dimensions, materials and inspection requirements. Carry its revision into the manufacturing order, including any change in fence height, gate support or post spacing. We can coordinate supplied components against that output; unresolved ground conditions or anchor design should remain visible project inputs rather than become assumptions hidden in a fence quotation.

FencingWise can coordinate material interfaces against that detail, but general fence supply does not include structural foundation design. Use the drawing request guide to keep the post, anchor or embedment interfaces on the correct revision, and retain the accepted design with the installation handover records.
